Industrial

Gates can be made from all types of fencing material including chain link, wood, ornamental aluminum, ornamental iron and PVC and can either swing or slide.  Gates can be made for any size opening and can open from either side.  Slide and swing gates are usually single or double leaf.  Your choice of gate size and type depends on the surrounding ground and space considerations, as well as cost.

Typical single swing gates are made up to a 6' width.  Larger single leafs can be made but would require industrial components.

When considering a slide gate you will need enough additional area to accommodate the sliding portion of the gate when open.  You must keep in mind that a slide gate is actually 50% larger than the opening to account for the counterbalance needed to support the gate.

For Do It Yourselfers
The size of a gate is measured from the inside of your hinge post to the inside of your latch post. Chain link gates are welded at corners.  A decorative scroll can be added. Various types of  hardware are available for swing gates.  Typical hardware includes standard hinges with a fork latch for a single swing gate or a center locking device for a double swing gate.  Self closing hardware can be added at an additional cost.

Self-Closing Hardware

  • Gravity hinges that are used in place of the standard hinges.
  • A spring gate closer that can be placed between the standard hinge.
  • "Kant Slam" hydraulic closer
  • "Tru-Close" hinges typically used on square posts.

Latches

  • Auto Latch
  • Butterfly Latch
  • Double Gate with Drop Bar uses E-Z Latch
  • Magna Latch
See also
Chain Link Fencing
Ornamental Aluminum
Ornamental Iron
PVC
Wood
Railings
Chain Link Fence Screen
Additional Products


top of page


Brochures and Specifications
Gates
Auto Gate Vertical Pivot Gate (pdf)
AutoGate Feature & Benefit for Vertical Pivot Gate (pdf)
Secure-Trac by Merchant Metals (pdf)
Tymetal Fortress Box Frame Cantilever Slide Gate (pdf)
Tymetal Fortress Gate Ornamental (pdf)
Tymetal Fortress Heavy Duty Cantilever Slide Gate (pdf)
Tymetal Fortress Structural Cantilever Slide Gate (pdf)
Tymetal Heavy Duty Overhead Slide (pdf)

Hardware
D & D Hardware (pdf)
Nationwide Industries Chain Link (pdf)
Nationwide Industries Ornamental Hardware (pdf)
Nationwide Industries Vinyl Hardware (pdf)
Nationwide Industries Vinyl Metal & Wood (pdf)
Nationwide Industries Wood Hardware (pdf)


Download Adobe Acrobat Reader to view and print PDF files.

top of page


Manufacturers Links
Auto Gate
Merchant Metals Inc.
Stephen's Pipe & Steel

top of page


Photos
Click on image to enlarge

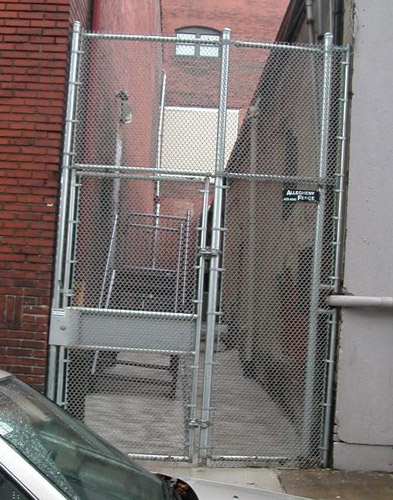

10' with transom gate
10' with transom gate
Aluminum slide gate
Aluminum slide
Tymetal aluminum slide gate
Tymetal aluminum slide
Pipe gate with welded hinges
Pipe gate with welded hinges
Tymetal aluminum slide gate and fence
Tymetal aluminum slide gate and fence

Gate with panic bar
Gate with panic bar

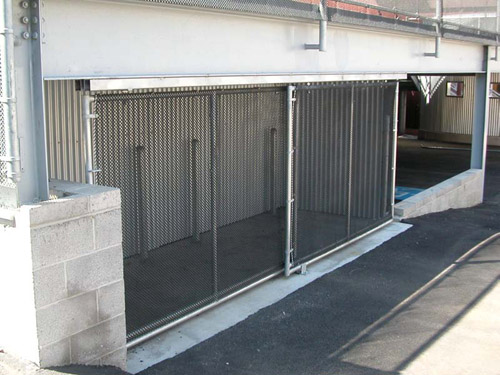

Overhead track slide gate
Overhead track slide
gate

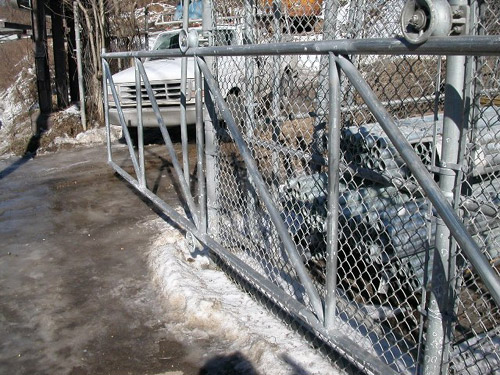

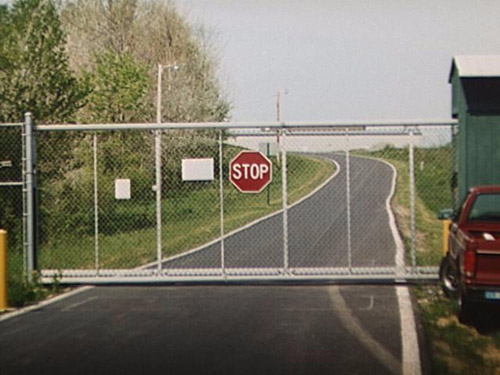

Pipe gate slide
Pipe gate slide
Pipe gate
Pipe gate

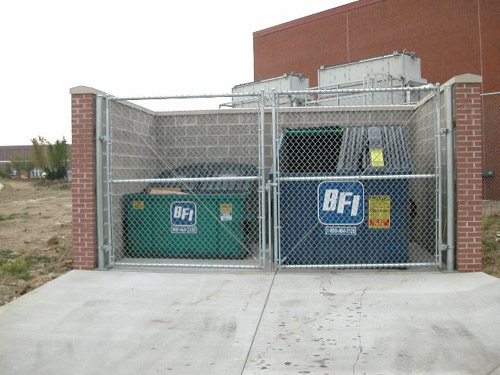

Dumpster gate
Dumpster gate
